Baseplate

You have bought/ordered your Universal Robot and want to quickly start with the first tests?

The Baseplate by Obermeier Systems is a universal and flexible mounting system for all Universal Robots. Whether UR3, UR5, UR10 or UR16, the Baseplate is the safe and inexpensive basis for your robot application!

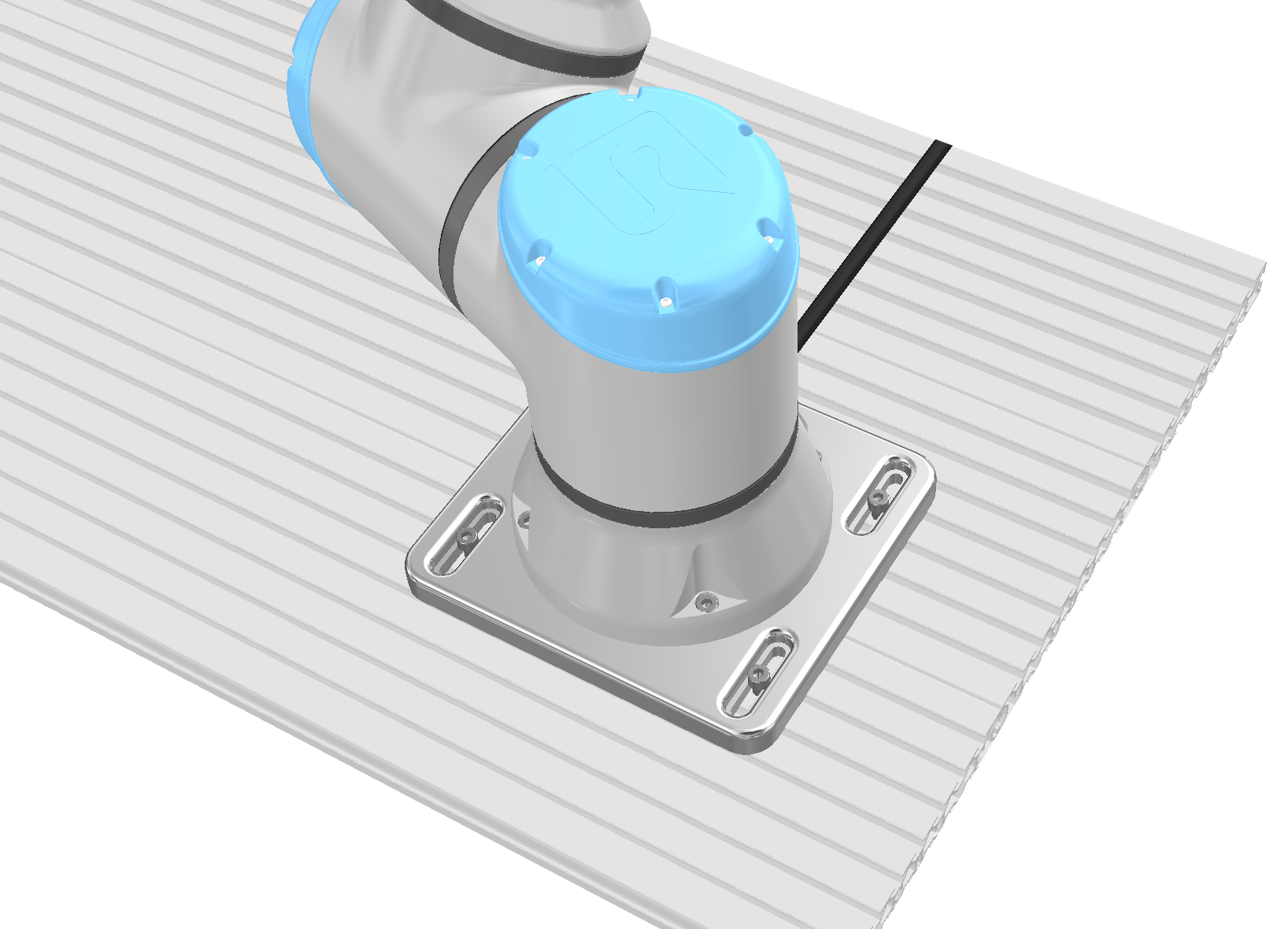

The Baseplate in operation

Werner Hampel from the Youtube channel “Roboterkanal" uses the Baseplate on his Universal Robot.

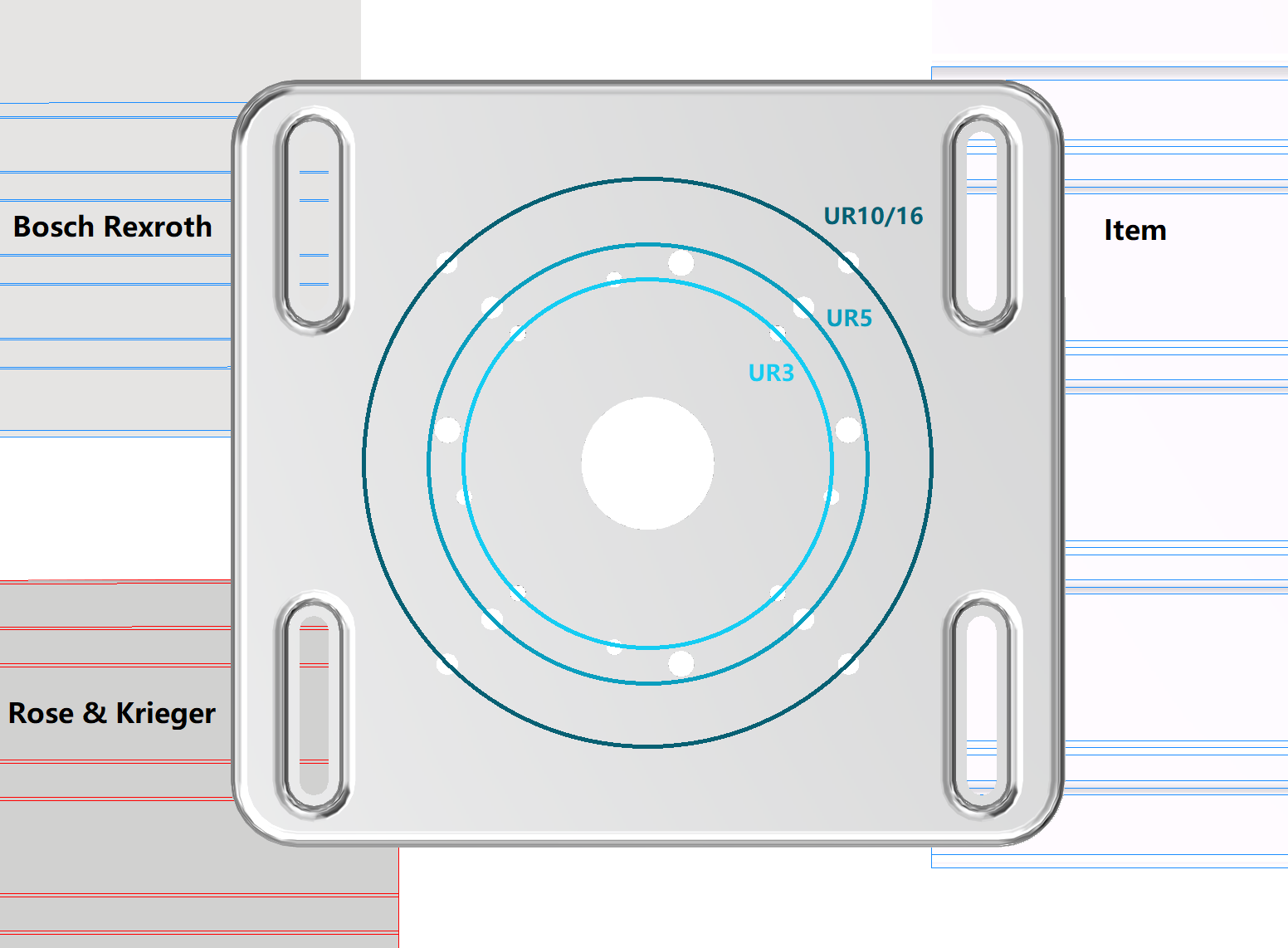

Advantages of the Baseplate:

Safe and flexible mounting of your robot.

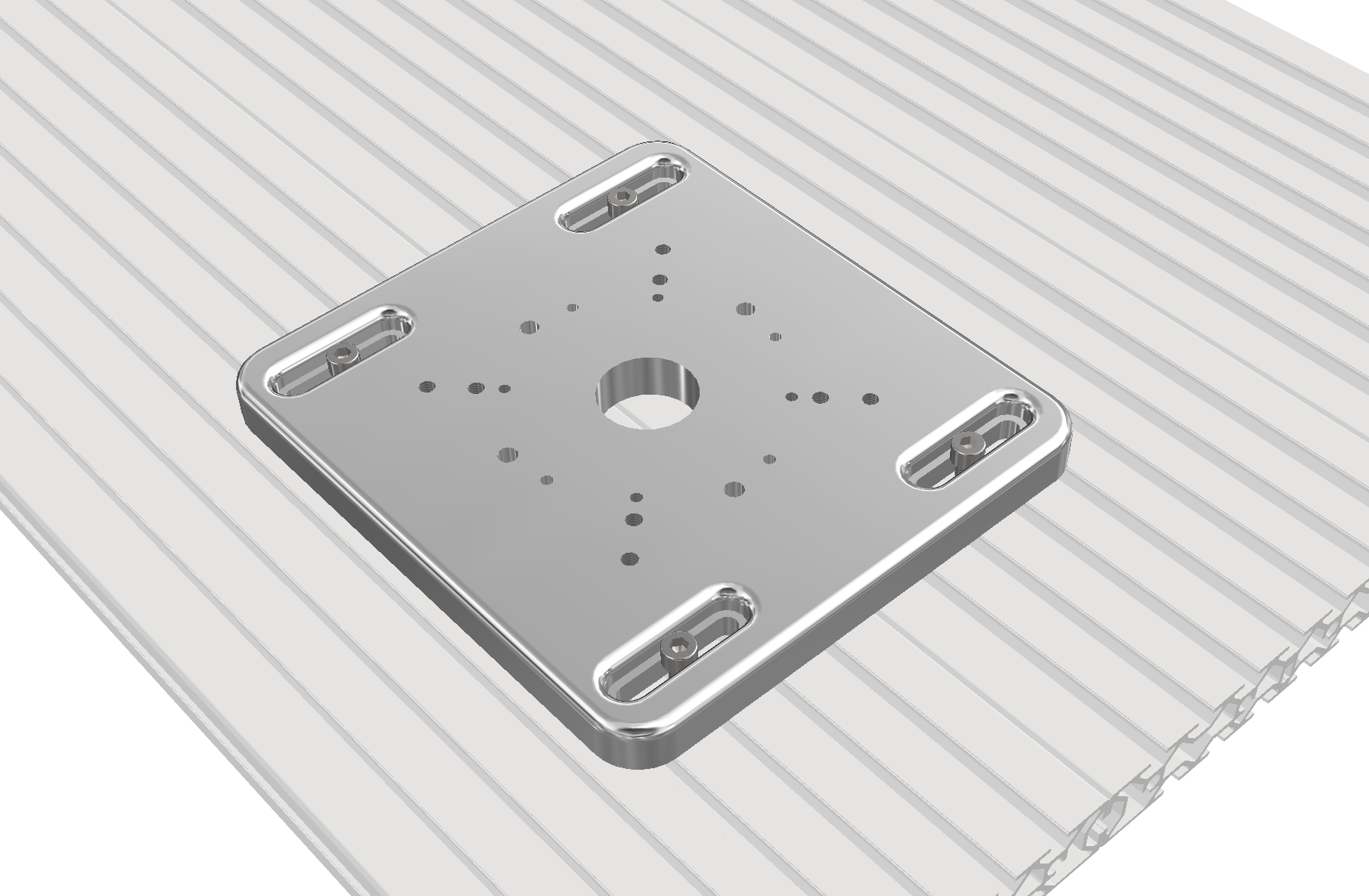

Compatible with aluminium profile systems from Bosch, Item, Rose+Krieger and many more.
Complete mounting kit with screws and dowel pins for UR3, UR5, UR10 and UR16.
Inexpensive and quickly available - start building your robot application in no time!
The baseplate complies with the assembly requirements of the Universal Robots operating manual.
The baseplate is suitable for human-robot collaboration thanks to its rounded design.

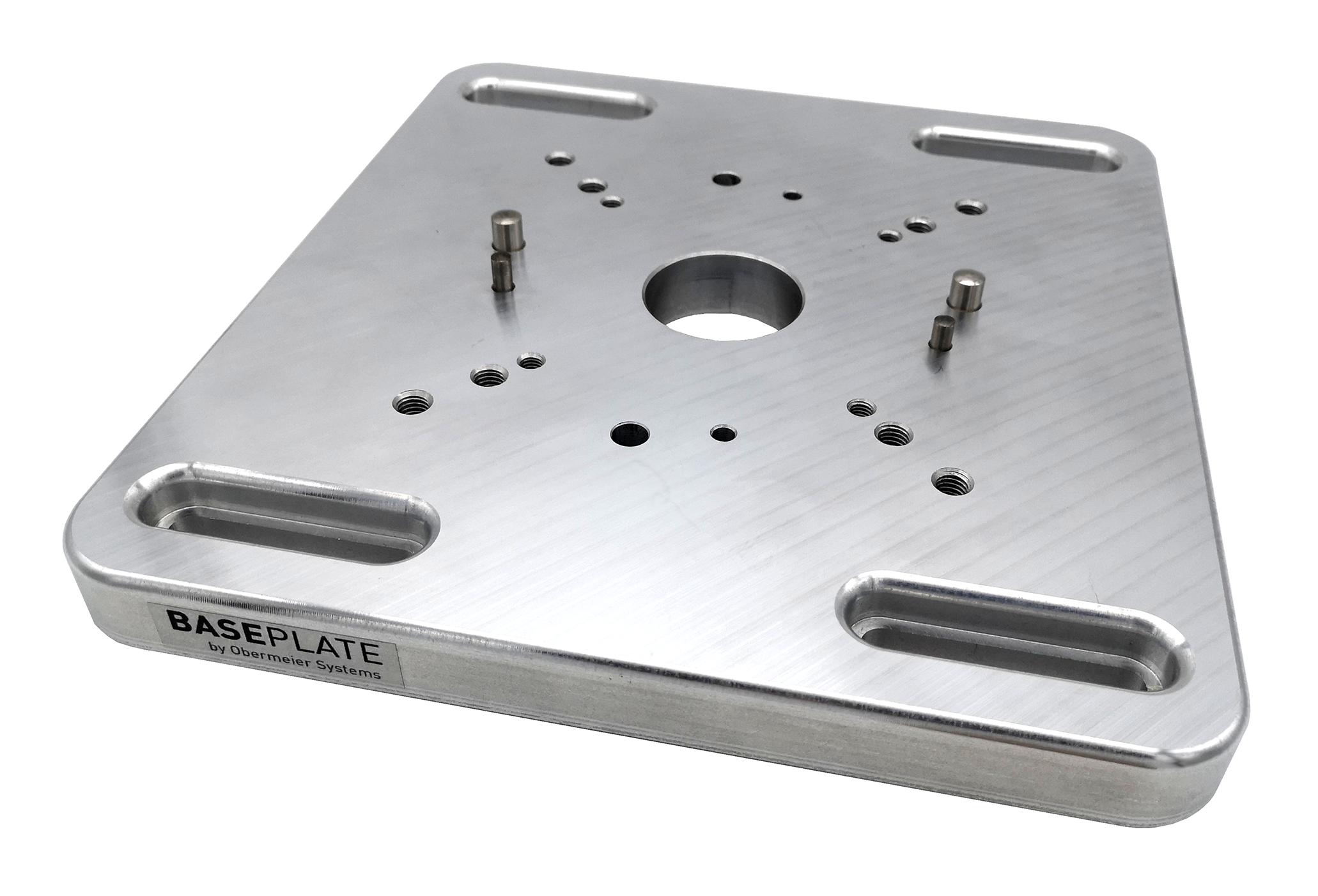

Scope of delivery

Baseplate
Mounting kit for all UR robots:
- 8x Cylinder head screw M8
- 4x Cylinder head screw M6
- 2x Dowel pin 8mm
- 2x Dowel pin 5mm

Downloads

Drawing baseplate

Mounting plate for Universal Robots UR3, UR5, UR10 and UR16

289 €

Request a quote now!
